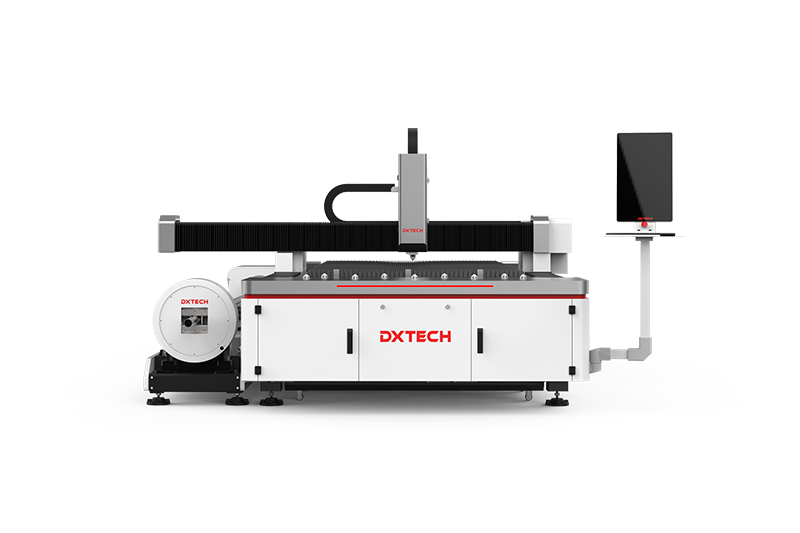

The ELT Series Laser Cutter is our FLT Series Laser Table with a Tube Cutting Extension and Exchange Table option made for an excellent dual purpose high capacity machine.
Specifications
| Brand | DXTECH | ||
|---|---|---|---|
| Application | Laser Cutting Metal | ||
| Laser Type | Fiber Laser | ||
| Applicable Material | All kinds of metal materials: stainless steel, carbon steel, galvanized steel, aluminum, copper, and iron, etc. | ||
| Laser wave length | 1064nm | ||
| Working Area | 1315*3030mm,1515*4040mm,2020*4040mm | ||
| Laser Power | 1000W/1500W/2000W/3000W | ||
| Repeated Positioning Accuracy | ±0.03mm | ||
| Transmission system | Gear + rails (We have standard brands, and can also produce as clients requested) |
||
| X.Y Axis Max Moving Speed | 140m/min | ||
| Max cutting speed | 1-60m/min (Depend on different metal materials and laser power and machine configuration) |
||
| Cutting Thickness (mm) | 0.5-100mm (Depends on power and materials) | ||
| Working Voltage | 220V 1ph 50hz(1KW-2KW);380V 3ph 50hz(3KW-20KW) | ||
| Gross Power | 15KW-20KW | ||
| Operating Temperature | 5-45℃ | ||
| Operating Humidity | 5-95% (Free of Condensed Water ) | ||
| Cooling Mode | Industry water chiller | ||
| Certification | ISO9001,CE, FDA, ROHS | ||
