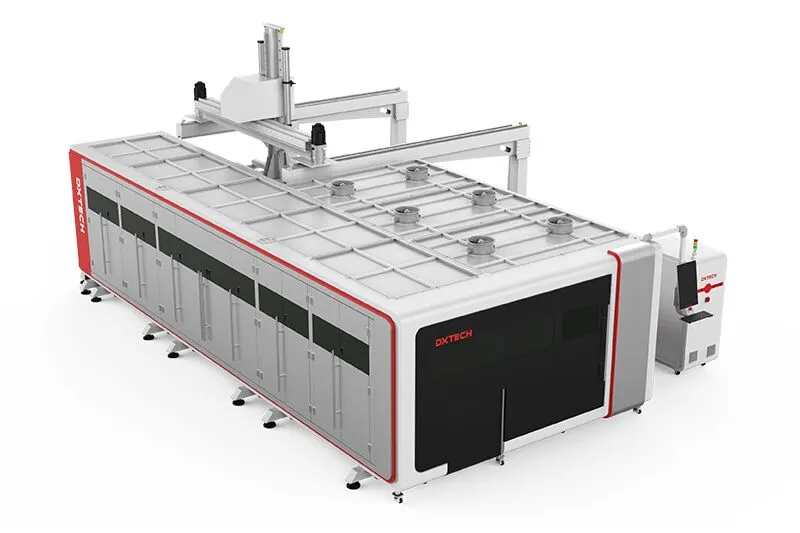

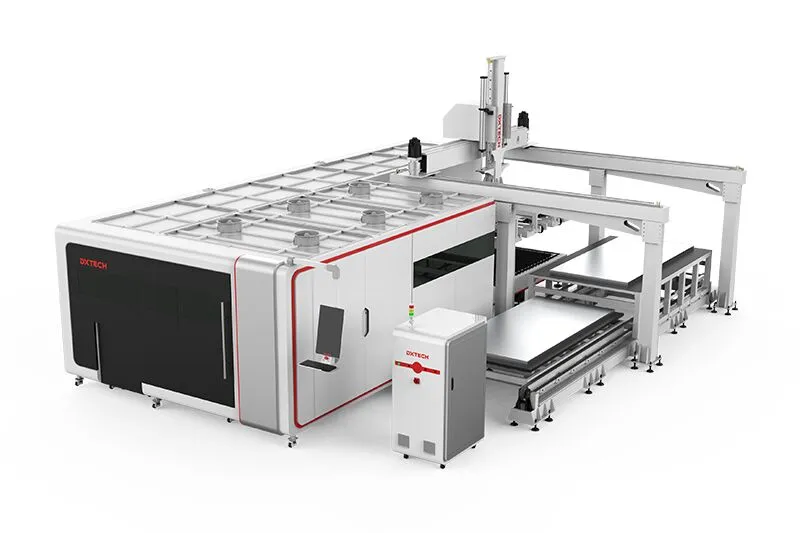

This all cover exchange table sheet and tube laser cutter has multiple functions. It can not only process metal sheets, but also process round metal tubes, square metal pipes, etc. The exchange platform greatly saves the loading and unloading time and improves the overall efficiency. With the advanced imported machine parts adopted, this machine has excellent processing performance and long working life. It can help metal fabricators improve processing efficiency and product quality. This multifunctional machine has wide applications in shipbuilding, auto manufacturing, engineering machinery, agricultural machinery, metal tools manufacturing and other industries.
Advantages
- Low cost: the sheet metal is automatically loaded on the exchange platform, and the finished products are stacked on the pallet. save non-productive duration and lower energy consumption.
- Higher Intelligence: it can accurately measure the metal sheet thickness. And then Sheet metals are automatically loaded to exchange platforms.
- Environmental friendly: With digital operation and safe handling, sheet metals are well protected from scratching and finished products will be at higher quality.
- Higher efficiency: it can serve multiple cutting machines at the same time, making production more efficient. With this advantage, the automatic loading and unloading system will save non-productive duration and lower the energy consumption.
High precision: it is one of the most popular automatic loading and unloading system of our machine because it can protect sheet metals from scratching with digital operation and safe handling. And the completed products have high quality.
Components of Metal Sheet And Tube Fiber Laser Cutter
Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
